EAD 331668-00-0601纖維增強錨釘ETA認證 fibre-reinforced anchor spikes
發布日期：2025-4-24 10:10:15 閱讀次數：42
纖維增強錨釘ETA認證標準－EAD 331668-00-0601
EAD 331668-00-0601 Glass, basalt, aramid, carbon, PBO (polyparaphenylene benzobisoxazole) and steel rovings for fibre-reinforced anchor spikes 玻璃、玄武巖、芳綸、碳纖維、PBO(聚對苯基苯并惡唑)和鋼絞線用于纖維增強錨釘
EAD 331668-00-0601纖維增強錨釘ETA認證標準－適用范圍
玻璃、玄武巖、芳綸、碳纖維、PBO(聚對苯撐苯并惡唑)和鋼絞線用于纖維增強錨釘(以下簡稱“絞線”)是一束連續的平行絲線(紗線)。纖維可以是不同的材料，即E玻璃、耐堿玻璃、玄武巖、芳綸纖維、碳纖維、PBO和三種類型的鋼(根據EN10088-11，鍍黃銅、鍍鋅和不銹鋼)。它們通過使用基體(有機或無機)嵌入或固定在混凝土或磚石基材中，基體不是本
EAD的一部分。錨桿的自由端向外散開并通過基材固定，以便將錨桿與FRP加固系統(向外散開的錨桿)連接起來。或者，一端可以完全嵌入(嵌入式錨桿)。

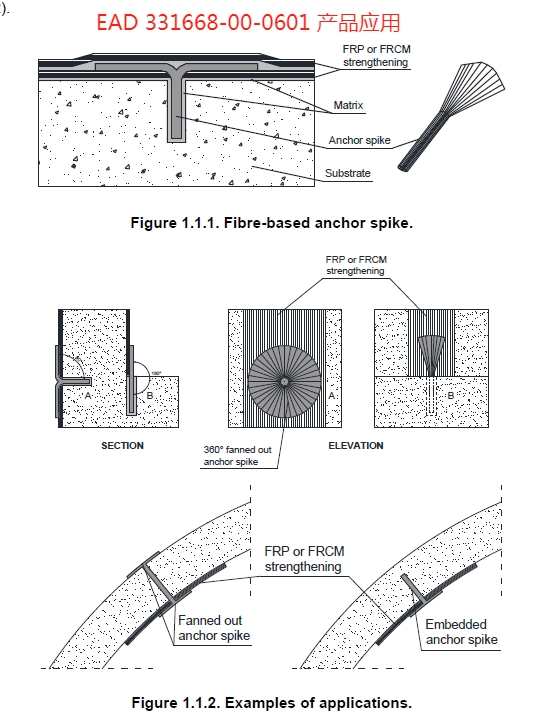

The glass, basalt, aramid, carbon, PBO (polyparaphenylene benzobisoxazole) and steel rovings for fibrereinforced anchor spikes (hereinafter referred to as “rovings”) are a bundle of continuous parallel strands/yarns (tow). The fibres can be of different materials, namely E-glass, Alkali-Resistant (AR) glass, basalt, aramid, carbon, PBO, and three types of steel (brass-plated, galvanized, and stainless steel according to EN 10088-11). They are embedded or fixed into concrete or masonry substrates by using a matrix (organic or inorganic) (Figure 1.1.1), which is not part of this EAD. The free ends of the anchor spike are fanned-out and fixed through the matrix in order to join the anchor to the FRP reinforcement system
(fanned-out anchor spikes). Alternatively, one end can be completely embedded (embedded anchor spikes).
EAD 331668-00-0601纖維增強錨釘ETA認證標準－主要檢測項目
Tensile properties 拉伸性能
Alkali resistance in high PH solution 高pH溶液中的耐堿性
Freezing and Trawing 凍結和融化
Water resistance 耐水性
Saltwater resistance 耐海水性
Creep behaviour 蠕變行為
Reaction to fire 防火等級
EAD 331668-00-0601纖維增強錨釘ETA認證標準－參考標準
EN 1990:2002/A1:2005/AC:2010 Eurocode - Basis of structural design
EN 10088-1:2014 Stainless steels - Part 1: List of stainless steels
EN 13501-1:2018 Fire classification of construction products and building elements. Classification using test data from reaction to fire tests
EN 15422:2008 Precast concrete products - Specification of glassfibres for reinforcement of mortars and concretes
EN ISO 6892-1:2019 Metallic materials - Tensile testing - Part 1: Method of test at room temperature
EN ISO 10618:2004 Carbon fibre - Determination of tensile properties of resinimpregnated yarn
EN ISO 15630-3:2019 Steel for the reinforcement and prestressing of concrete - Test methods - Part 3: Prestressing steel
ETA認證與CPR指令CE認證的關系
Under the CPR, harmonised technical specifications are harmonised European product standards (hENs) established by CEN/CENELEC2 or European Assessment Documents (EADs) produced by the European
CPR法規認證的依據是建筑指令歐盟協調標準或歐盟評估文件（EADs）
European Organisation for Technical Approvals (EOTA) as the basis for issuing ETAs for products not covered by hENs.The harmonised technical specification for a product defines EEA-wide methods of assessing and declaring
對于沒有被協調標準完全覆蓋的建筑產品的認證，可以通過EOTA機構核發ETA認證證書（等同于CE認證書）。
歐盟公告NB機構&TAB機構-捷克TZUS (NB1020)介紹
TZUS是歐盟公告號機構，其歐盟公告號為1020(Notified Body 1020-NB1020)。可以根據歐盟相關規定來簽發CE證書。
TZUS同時也是ETA(European Technical Approval)的認證委員之一，可以根據相關法規來簽發ETA證書。
TZUS中國
南京睿督公司為T(mén)ZUS實驗室（歐盟公告號NB1020）在海外中國區的授權機構，為客戶提供專業合規的歐盟CE認證和ETA認證。南京睿督公司網址：www.shseg-gps.com，電話：025-8658 3475
歐盟ETA認證相關閱讀
歐盟ETA認證/EAD標準編號 （歐盟建材ETA認證標準下載） http://www.cprce.com/Certification/eta/988.html
南京睿督2023年最新解讀：歐盟ETA認證與CPR法規及CE認證的關系 http://www.cprce.com/Certification/eta/918.html
歐盟公告NB機構&TAB機構-TZUS(NB1020)歐盟強制CE認證及ETA認證 http://www.cprce.com/Certification/eta/919.html
歐盟公告NB機構&TAB機構-TSUS(NB1301)歐盟強制CE認證及ETA認證 http://www.cprce.com/Certification/eta/916.html
睿督SMART提供ETA認證，ETA報告，ETA評估報告，緊固件ETA認證，錨栓ETA認證，化學錨栓ETA認證，車修壁虎ETA認證，植筋膠ETA認證，預埋件ETA認證，槽埋ETA認證、土工ETA認證、伸縮縫ETA認證、外墻保溫系統ETA認證、防水背襯板等歐盟ETA認證、預應力錨具ETA認證
南京睿督授權合作實驗室同時為歐盟NB及TAB機構，可以同時受理建材歐盟CE認證和歐盟ETA認證。南京睿督為客戶提供專業合規的歐盟CE認證和ETA認證，減少認證中間溝通環節，權威省時省力。
